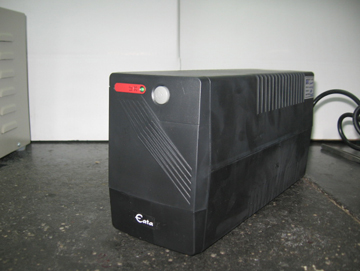

Line Interactive UPS Systems (Pure Sine Wave)
Build in Automatic Voltage Regulator (AVR)
- Overload
- Short Circuit
- Battery Low
- Output High/Low
- Overcharging
- Spike Protection
- Input Voltage Range:160V TO 260V
- Output Voltage: 230+/-1%
- AVR Range Input Voltage: 140V TO 280V
- AVR Range Output Voltage: 200V TO 240V
- Wave Form: Pure Sine Wave
- Recharge Time: 3-4 hours to 80% from fully discharged condition.
INPUT |
||
|---|---|---|
Power Rating |
1KVA / 12V,36V DC |
3KVA / 72V DC |
Voltage Range |
Single Phase - 220V + 20% |
180-270 Vac full load Extended to 140V-for half load |
Frequency |
50Hz + 5Hz |
|
Input Power Factor |
>0.95 Active Power factor correction |
|
Electrical Connection |
6A/3 Pin, indian Lead |
16A/3 Pin, Indian Lead |
OUTPUT |
||
Voltage |
Single Phase - 220V / 230V + 1% |
Single Phase - 230 V + 3% |
Frequency |
50Hz + 0.05 Hz |
|
Wave Form |
Sine Wave |
|
Transient Response |
<8(10% - 90% Liner Load) |
|
Voltage Harmonic |
<3% |
|
Overload Capacity |
110%30 sec, 111 to 150% : 18 sec, > 150%:1 sec |
|
Crest Factor |
3:1 |
|
3pin Socket |
6A Three socket |
6A x 2 socket and 16A x 2 socket |
500VA TO 15KVA
Communication Devices,Computers & Peripherals, Electro Medical Instruments, CNC Machines, ICU hospitals, etc.
